TB6612FNG dual channel motor driver breakout
TB6612FNG dual channel motor driver breakout
Regular price
Rs. 399.00
Regular price
Sale price
Rs. 399.00
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability

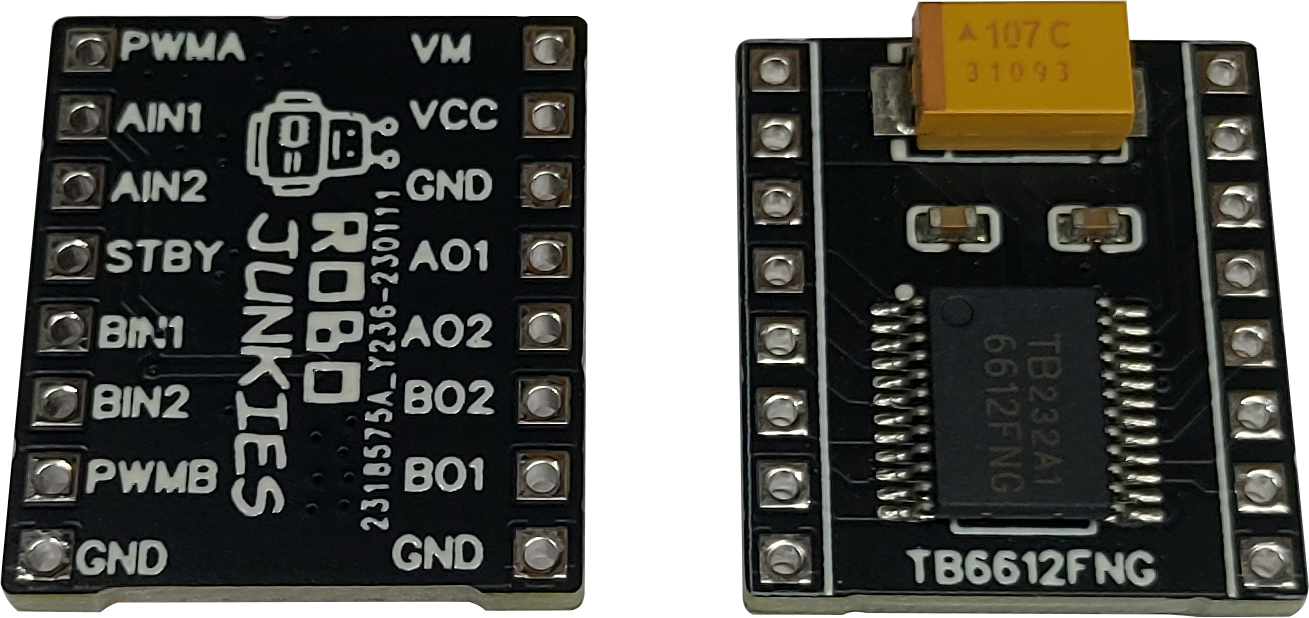

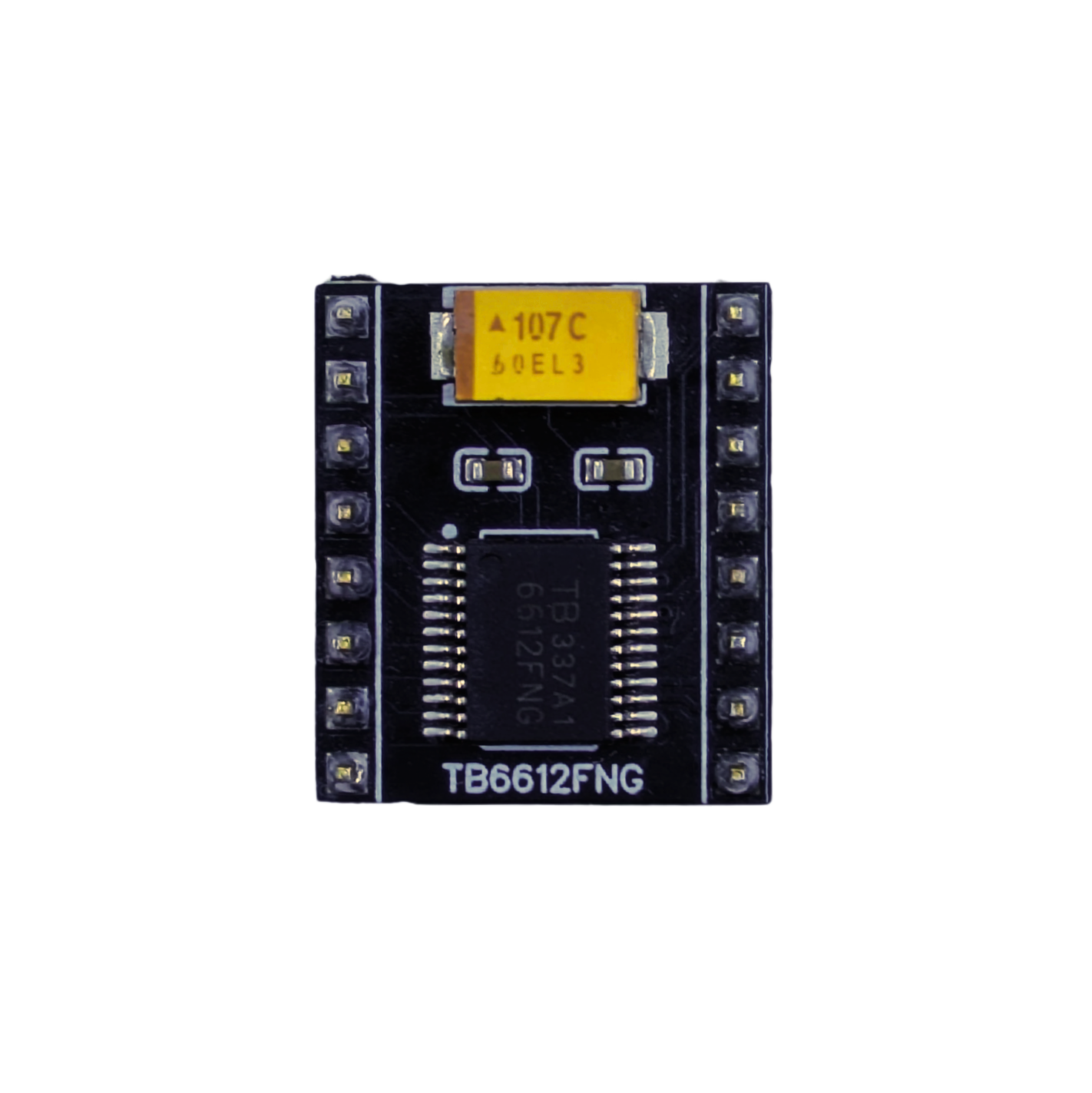

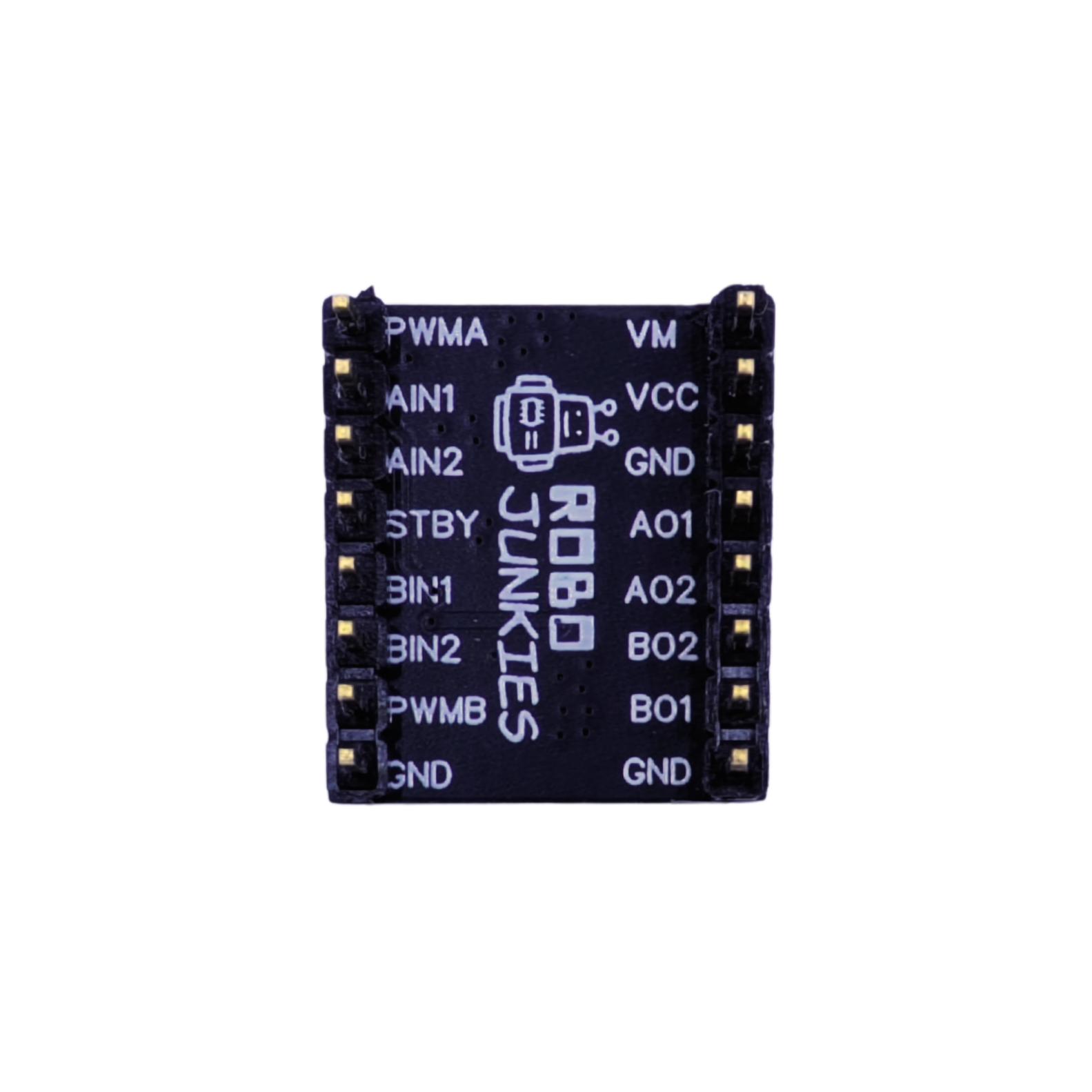

This motor driver breakout uses the original TB6612FNG chip by Toshiba which is a staple for small sized brushed DC Motors. Its extremely popular and very easy to set up and use along with your microcontroller.
Its widely used along with n20 motors to make the perfect combination for small sized robots.
Input Voltage- 5-12 V
Input logic voltage- 3.3- 5.0 V
Output Current (continuous)- 1 Amp / channel
Output Current (peak)- 3.2 Amp / channel
Dimensions- 20*18*5 (l*b*h in mm)
Weight- 3 grams
Its widely used along with n20 motors to make the perfect combination for small sized robots.
Input Voltage- 5-12 V
Input logic voltage- 3.3- 5.0 V
Output Current (continuous)- 1 Amp / channel
Output Current (peak)- 3.2 Amp / channel
Dimensions- 20*18*5 (l*b*h in mm)
Weight- 3 grams
