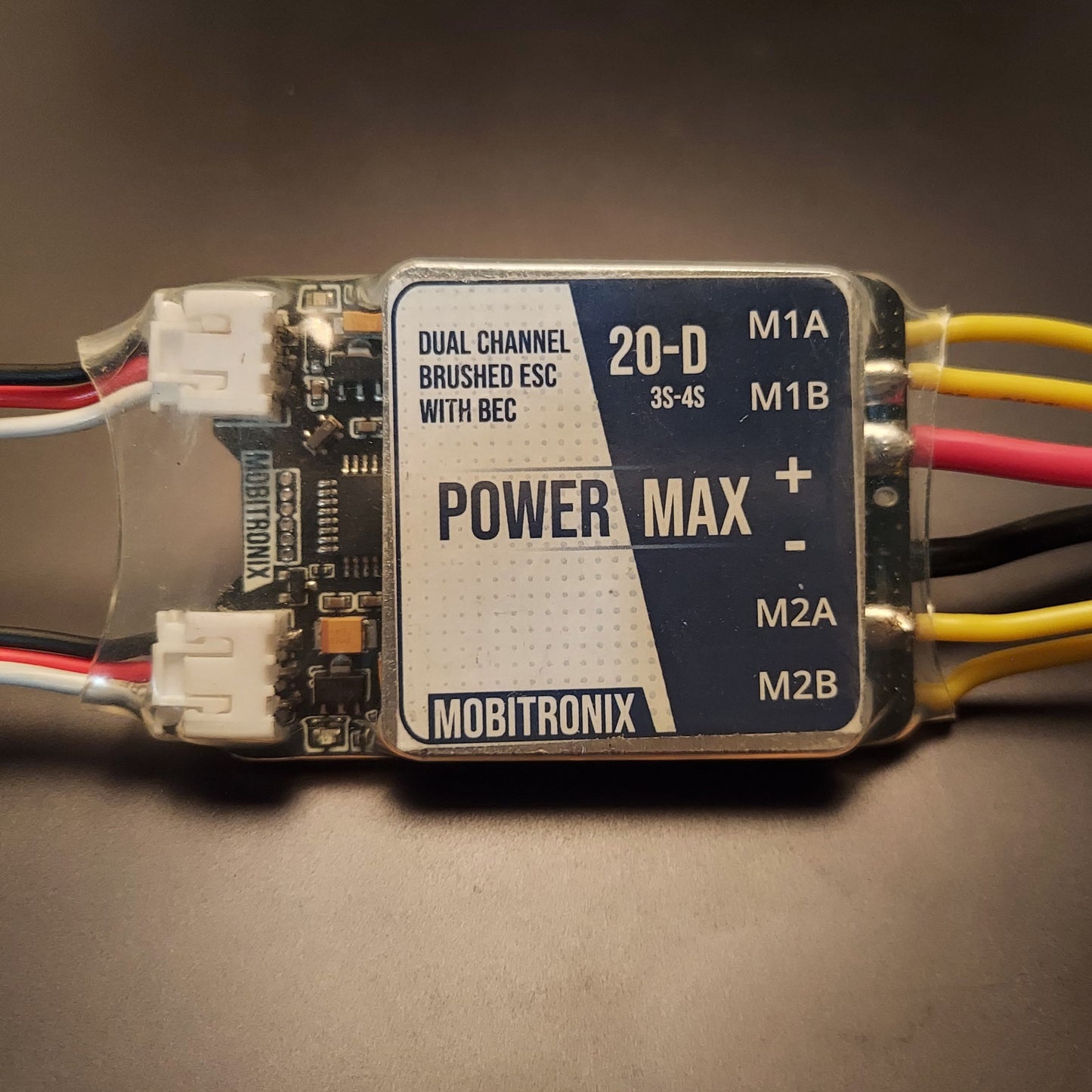

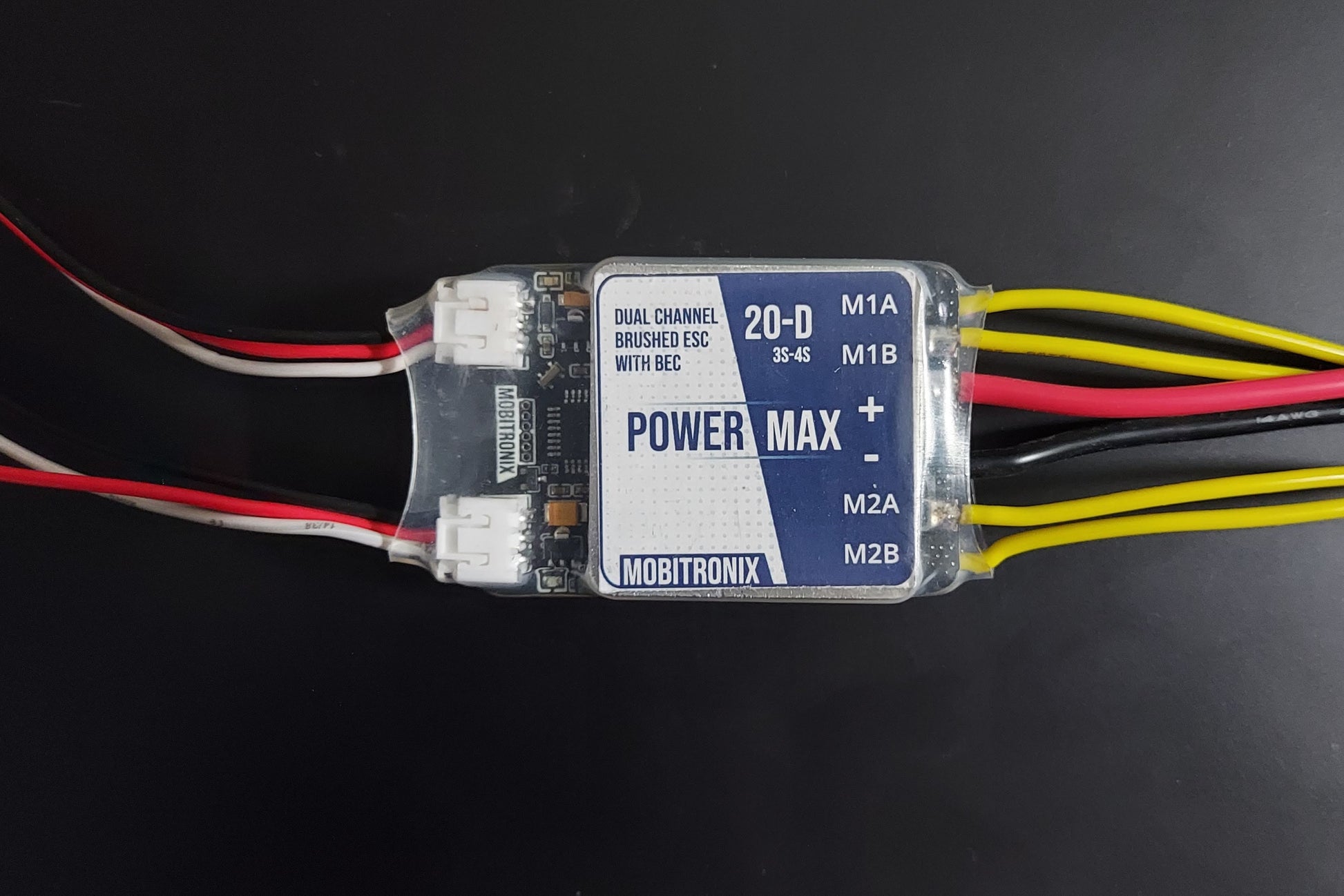

PowerMax 20-D (Dual Channel Brushed ESC 20 Amp)

PowerMax 20-D (Dual Channel Brushed ESC 20 Amp)

Regular price Rs. 3,000.00
Regular price Rs. 3,500.00 Sale price Rs. 3,000.00
Sale Sold out
Tax included. Shipping calculated at checkout.

The PowerMax 20-D is a dual channel bidirectional ESC capable of supplying 20 Amps per channel. This makes it a perfect centrepiece for your Roborace and Robosoccer bots.

Technical Specifications-

Input Voltage Range- 11-17V (3S- 4S)
Output Current (Continuous) – 20 Amp per channel
Output Current (Peak)- upto 45 Amp per channel

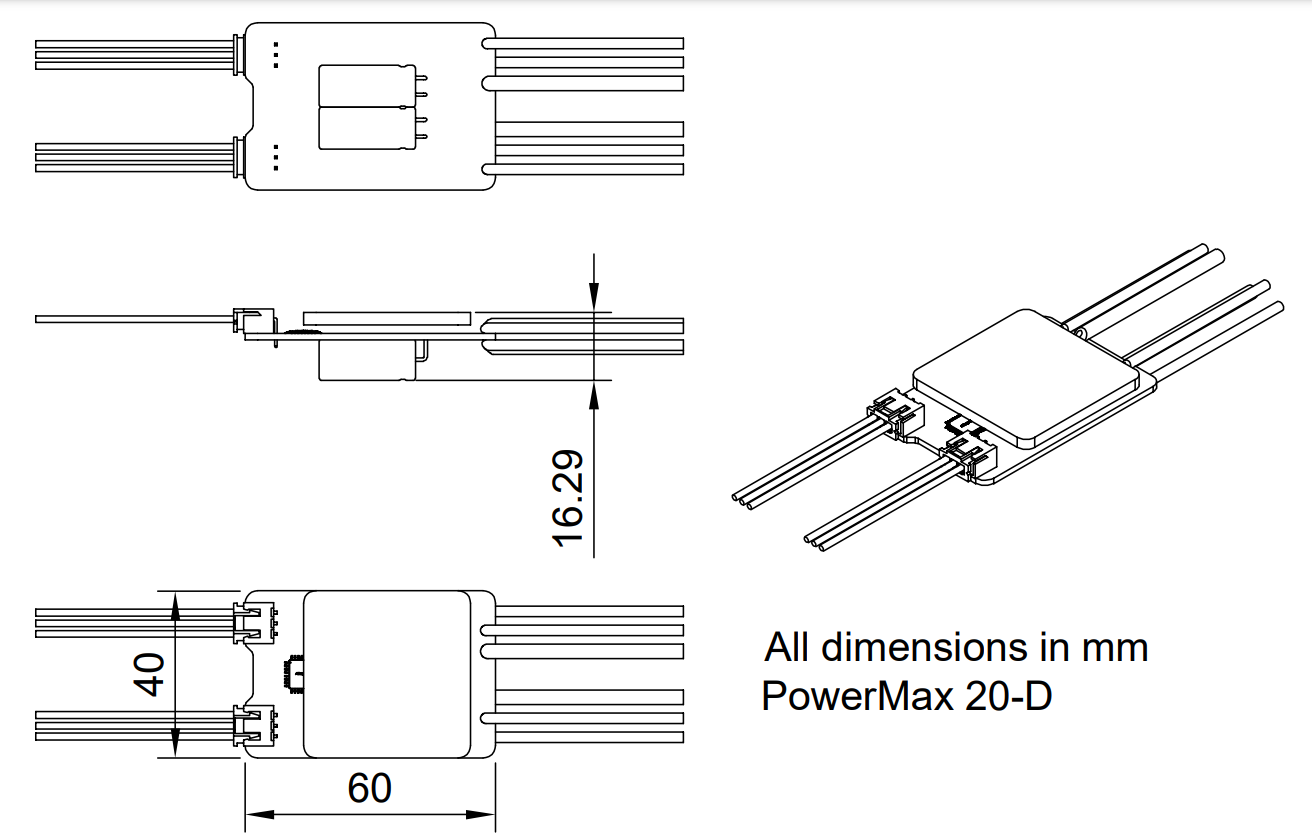

Dimensions-62 x 40 x 16 mm (excluding wires)
Weight- 50 gms (excluding wires)
Input- R/C Servo
BEC – 5V @ 100 mA (max)
Features include signal-loss failsafe, synchronous rectification, regenerative braking, and an isolated heat sink plate. The Powermax series can be used with any standard RC signals.


Looking to take your RC car, boat, or truck to the next level? Look no further than the PowerMax 20 Amp Brushed ESC! This powerful electronic speed controller is designed to deliver optimal performance and control for your brushed motor-powered vehicles.

Key Features:

1. High Power Output: The PowerMax ESC boasts a 20 Amp current rating, providing ample power to handle demanding applications. Whether you're tearing up the tracks or hitting the water, this ESC can handle it with ease.

2. Smooth and Precise Control: With its advanced motor control algorithms, the PowerMax ESC offers smooth acceleration and precise throttle response. Experience enhanced control over your vehicle's speed and maneuverability like never before.

3. Reverse Functionality: Need to quickly change direction? The PowerMax ESC comes equipped with a reverse function, allowing you to effortlessly switch gears and navigate tight spots with confidence.

4. Compact and Lightweight Design: Designed with convenience in mind, this ESC is compact and lightweight, making it easy to install and fit into various RC vehicles. Its small footprint doesn't compromise on performance, ensuring a seamless integration into your setup.

5. Wide Compatibility: The PowerMax ESC is compatible with a wide range of brushed motors, allowing you to use it with different RC vehicles and configurations. It's versatile enough to support various applications and adapt to your changing needs.

Upgrade your RC experience with the PowerMax 20 Amp Brushed ESC today! Unleash the full potential of your brushed motor-powered vehicles and enjoy enhanced performance and control like never before.

Place your order now and take advantage of this amazing power-packed ESC that will transform your RC adventures!
