LF-2 Carrier Board
LF-2 Carrier Board
Regular price
Rs. 549.00
Regular price
Rs. 599.00
Sale price
Rs. 549.00
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability

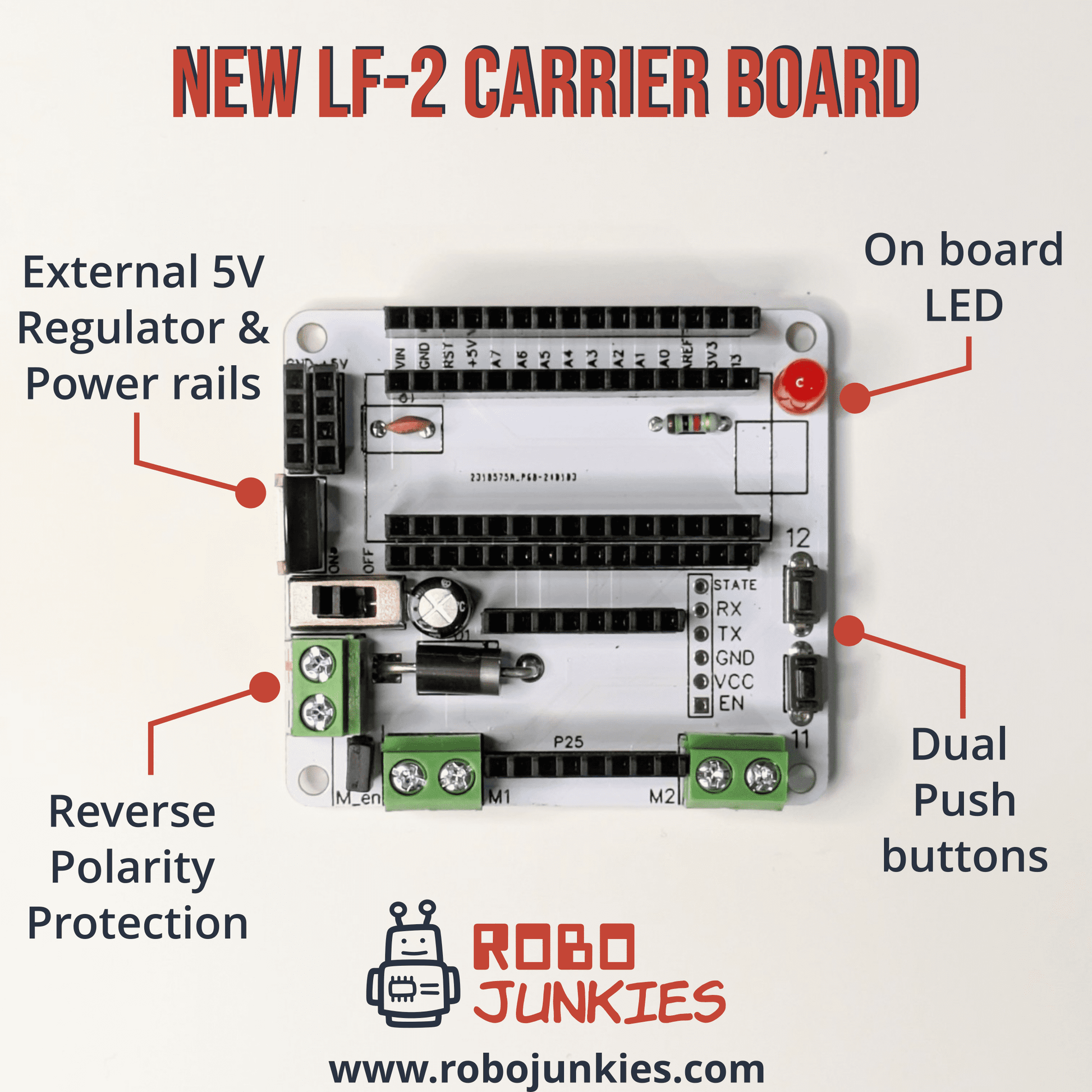

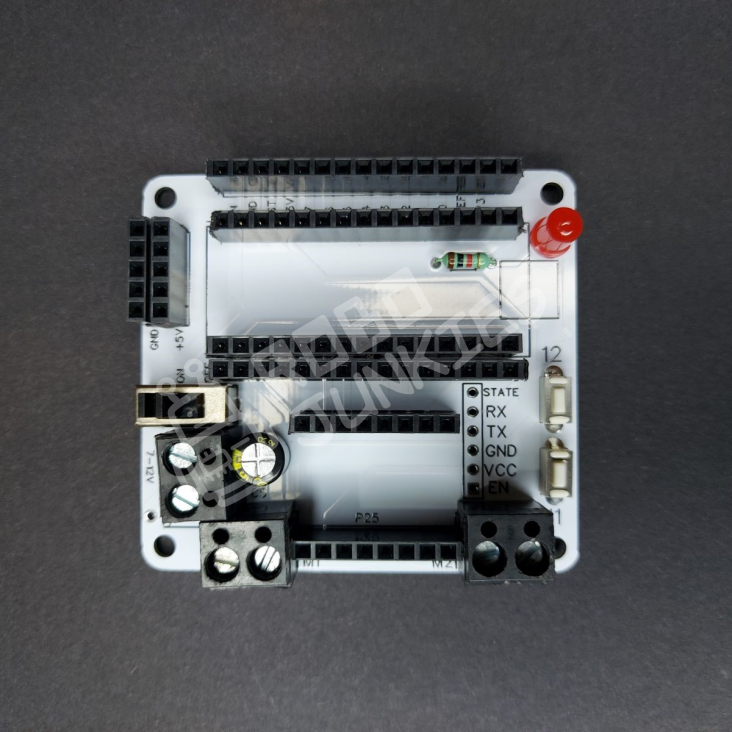

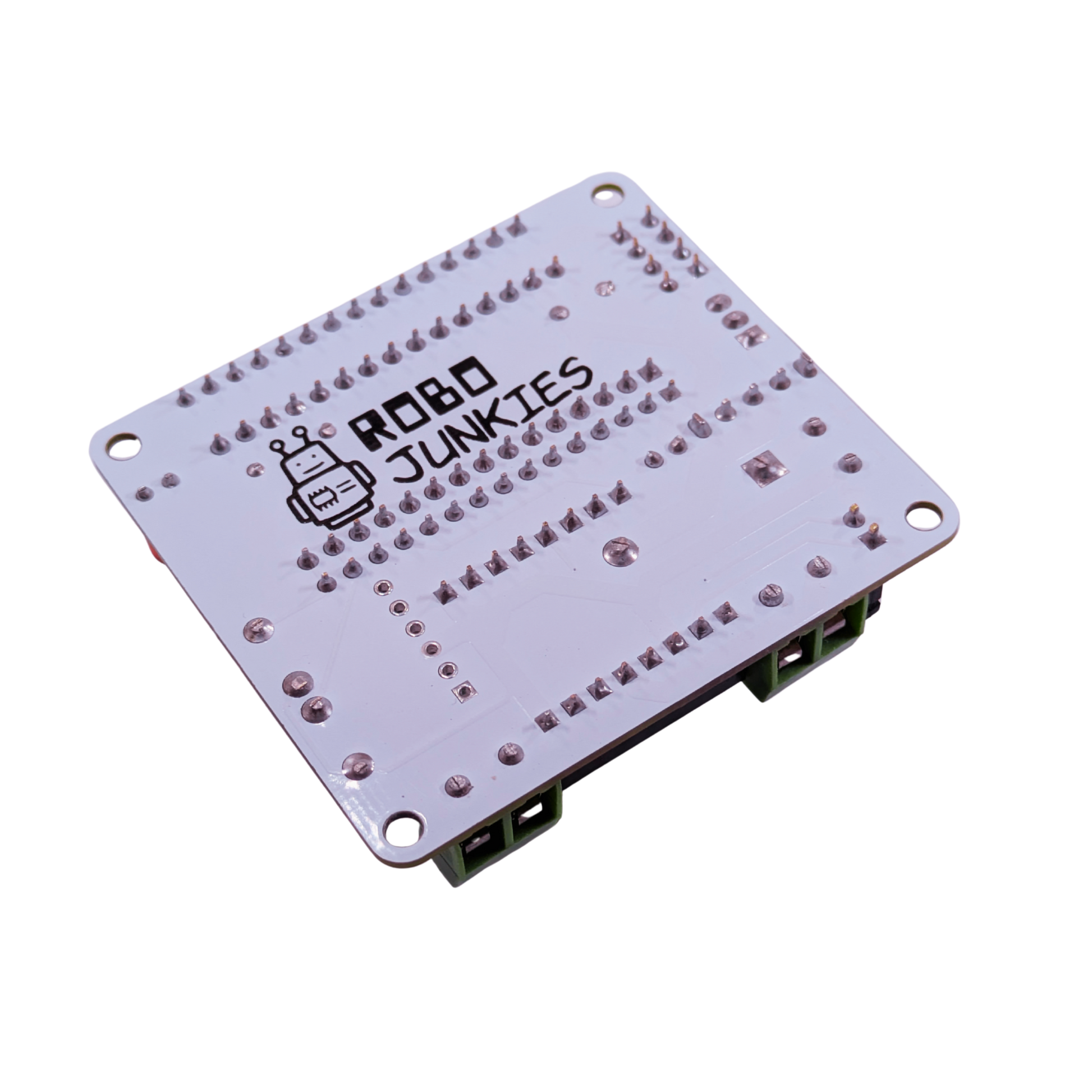

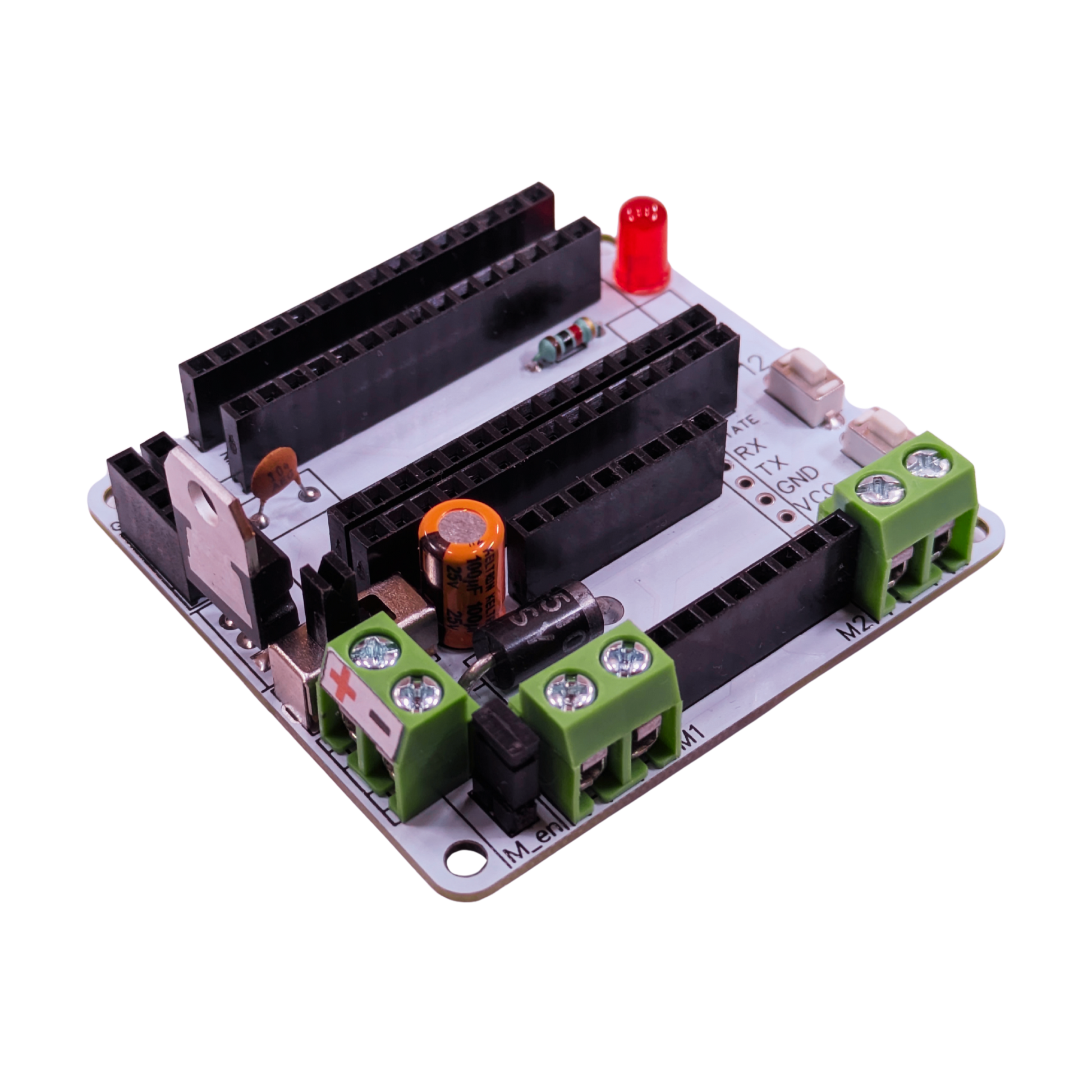

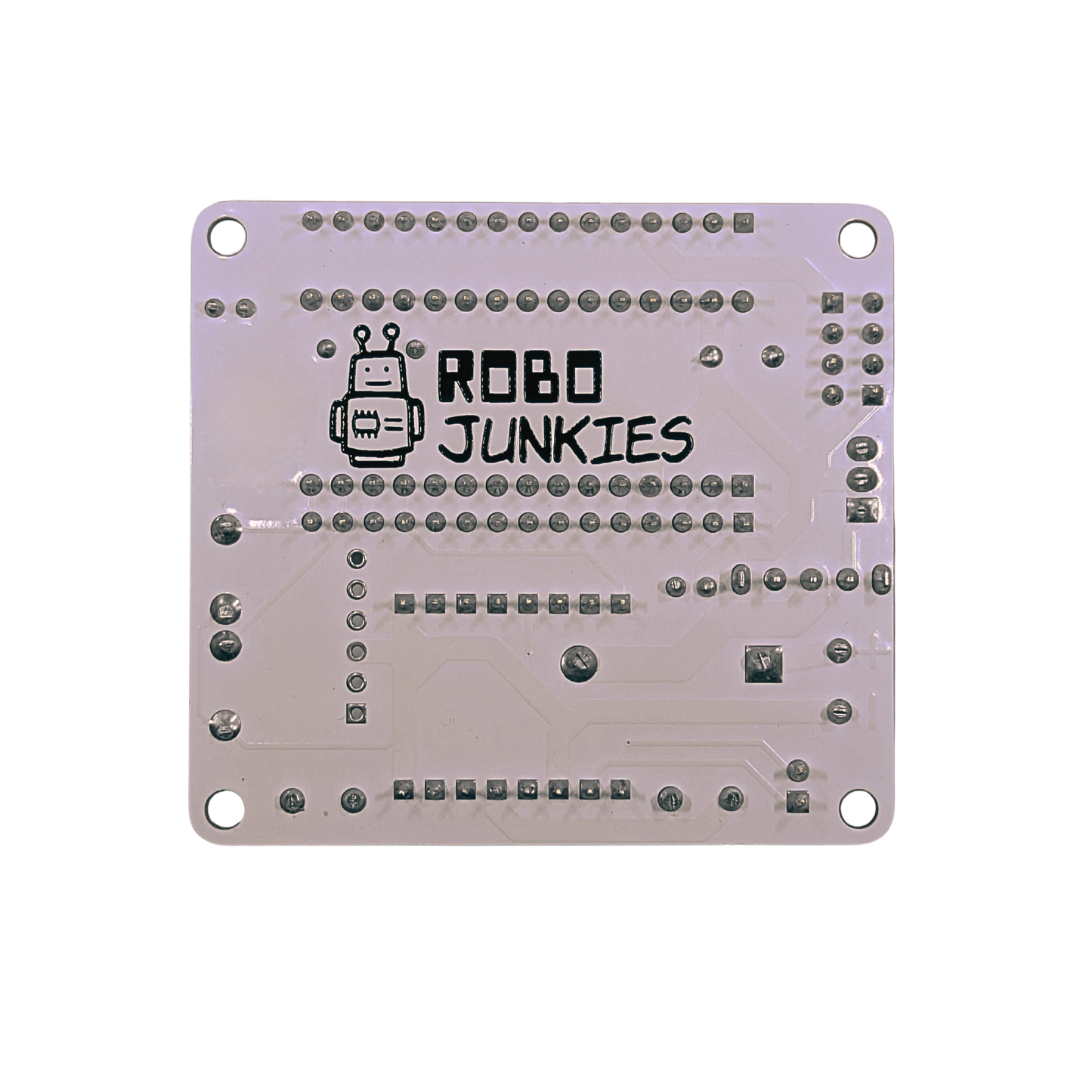

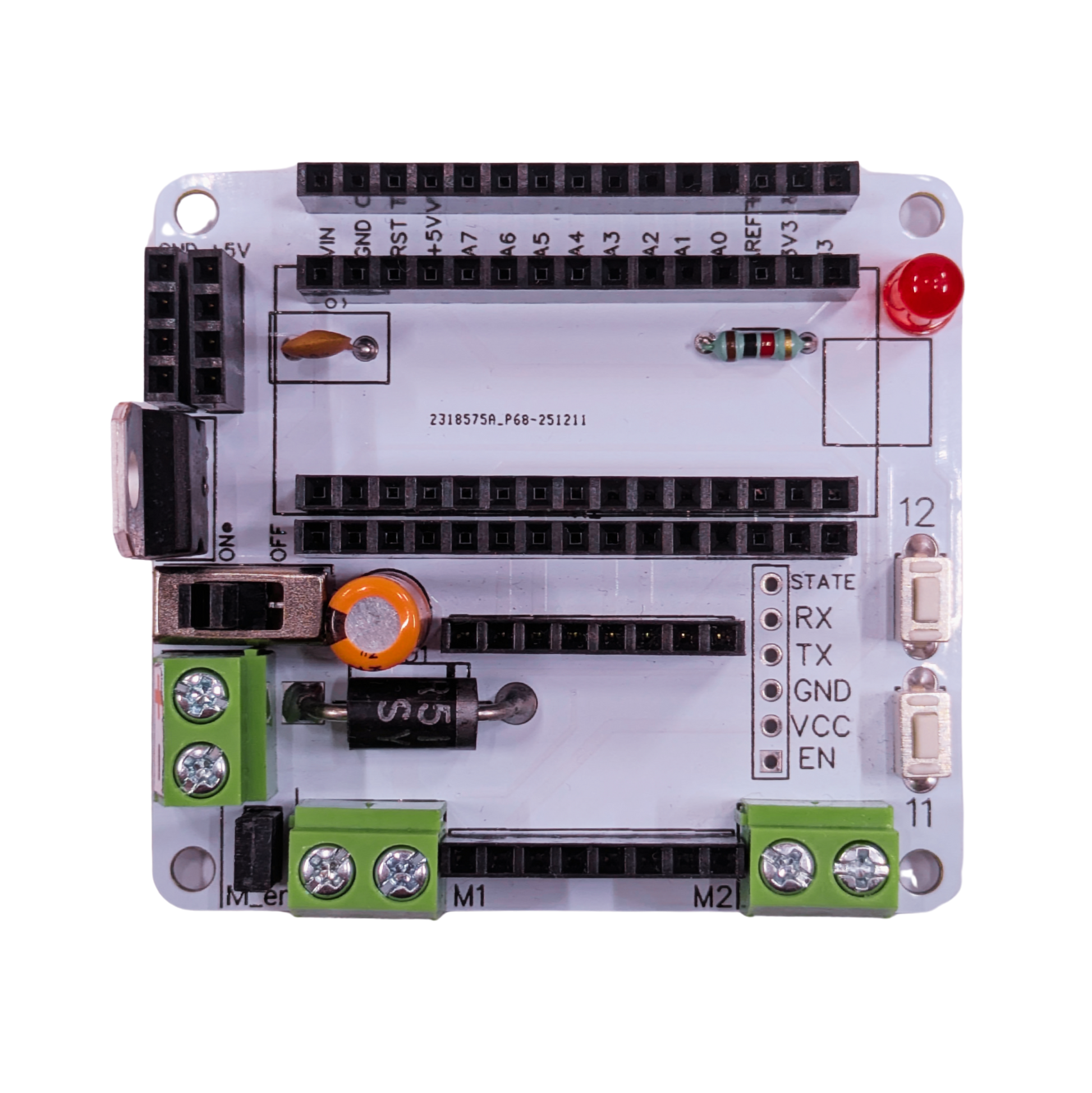

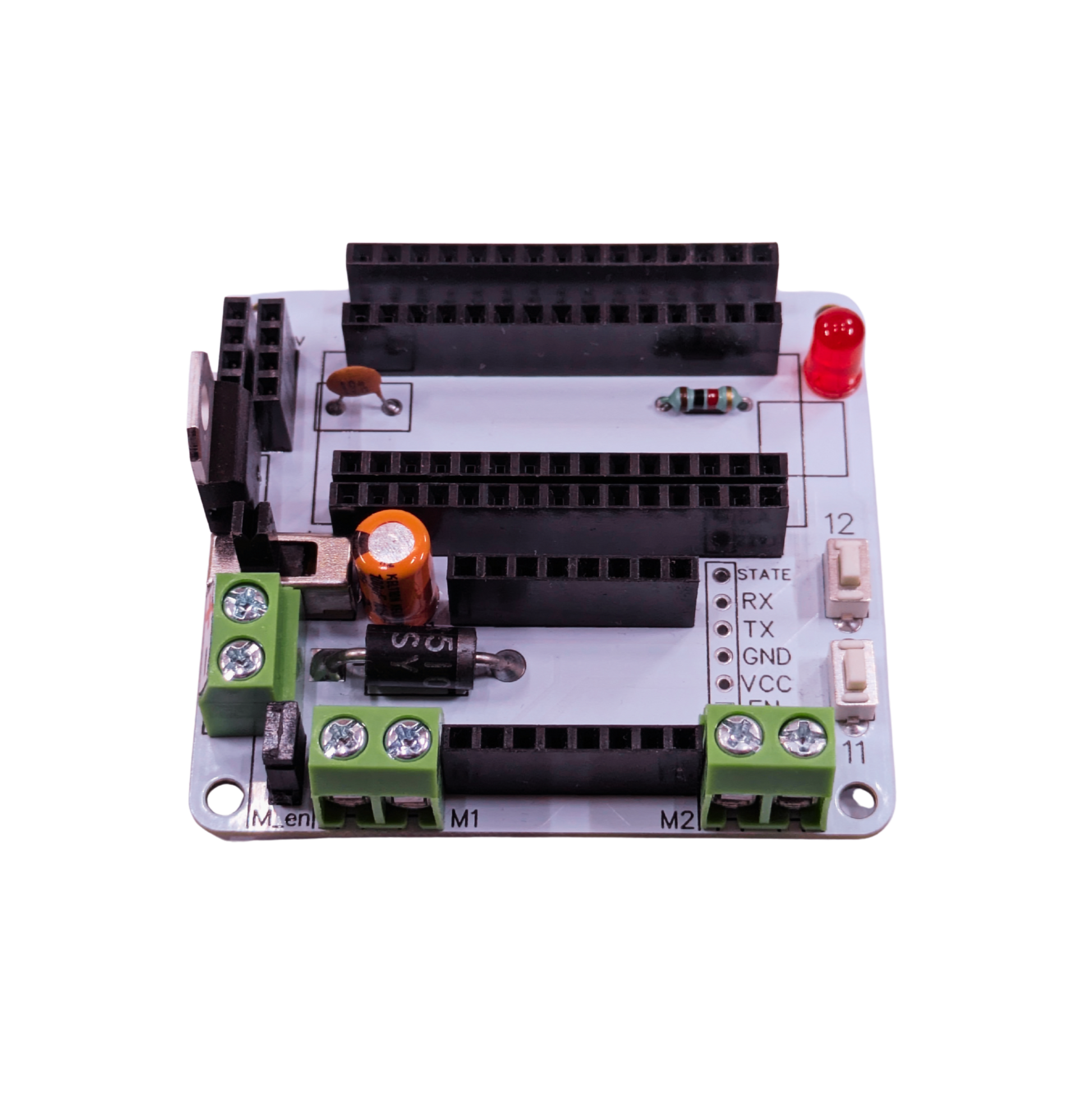

The LF-2 Carrier board makes it easy to build your favourite robotics project while keeping your project extremely modular. It accepts an Arduino Nano, and a TB6612FNG Motor Driver so that most 2 wheeled drive robotics applications are taken care of. It also gives you a breakout of all Arduino pins as well as separate 5V & GND header pins to connect separate components as you please. All of this while keeping an extremely compact size.

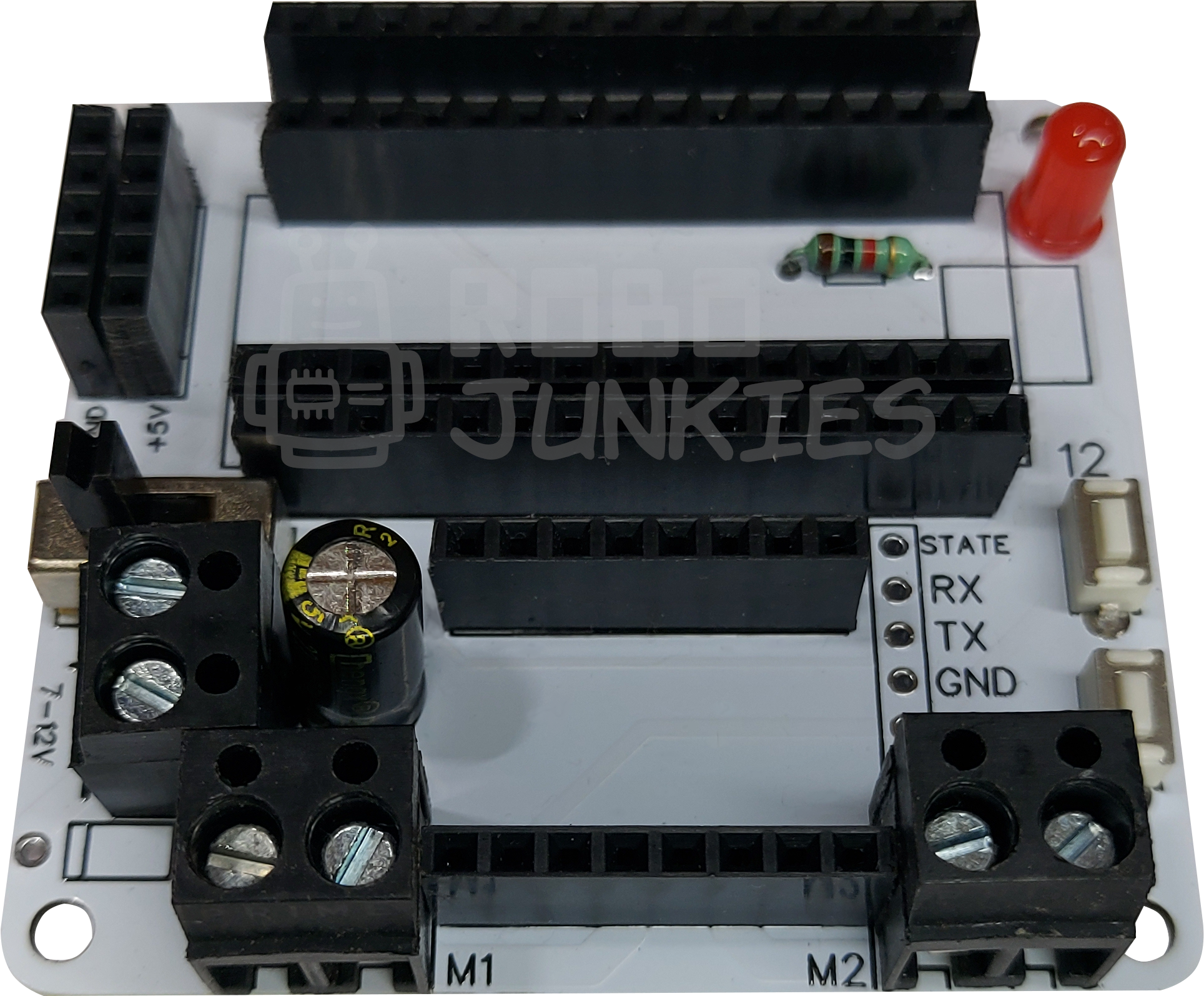

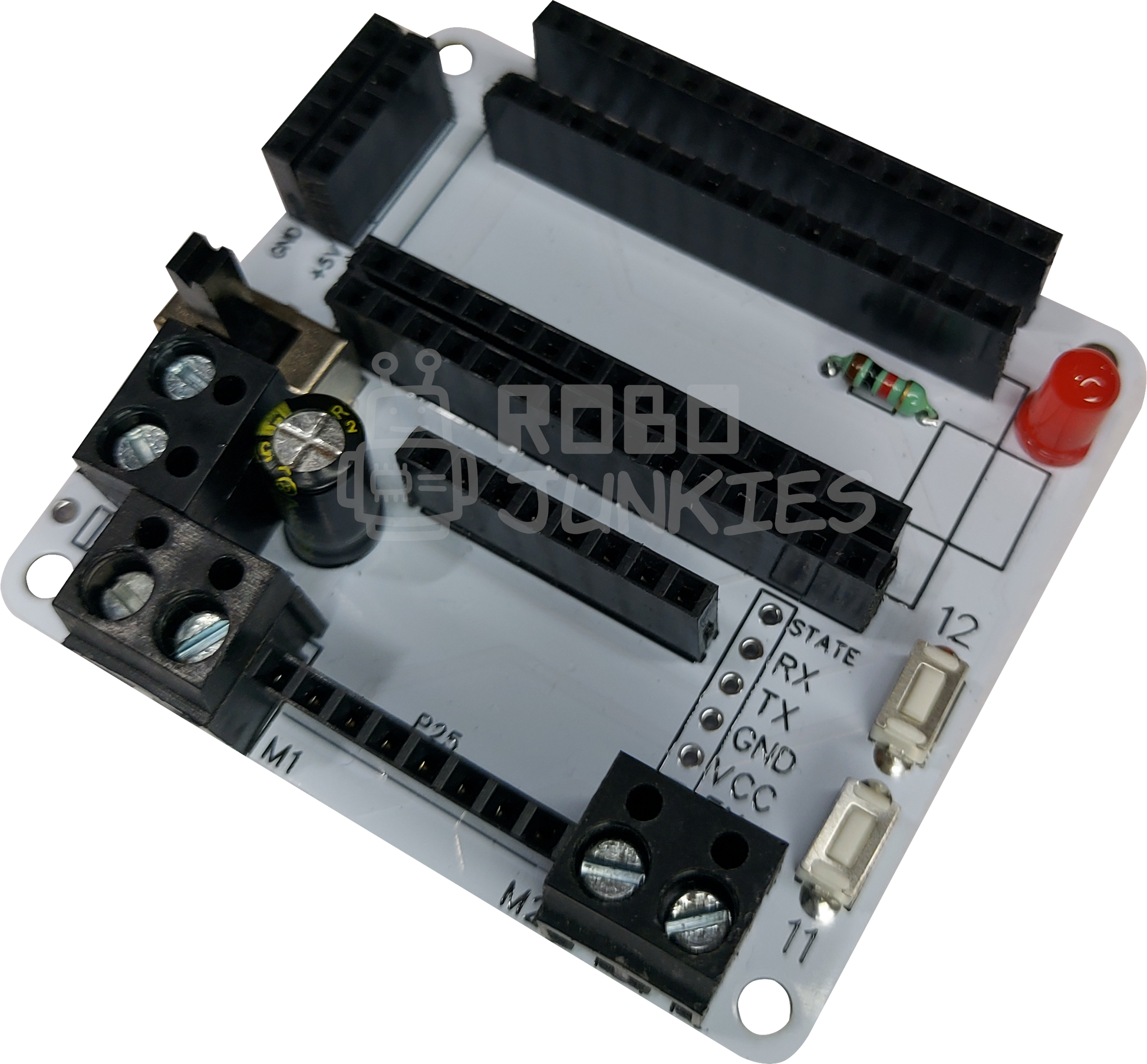

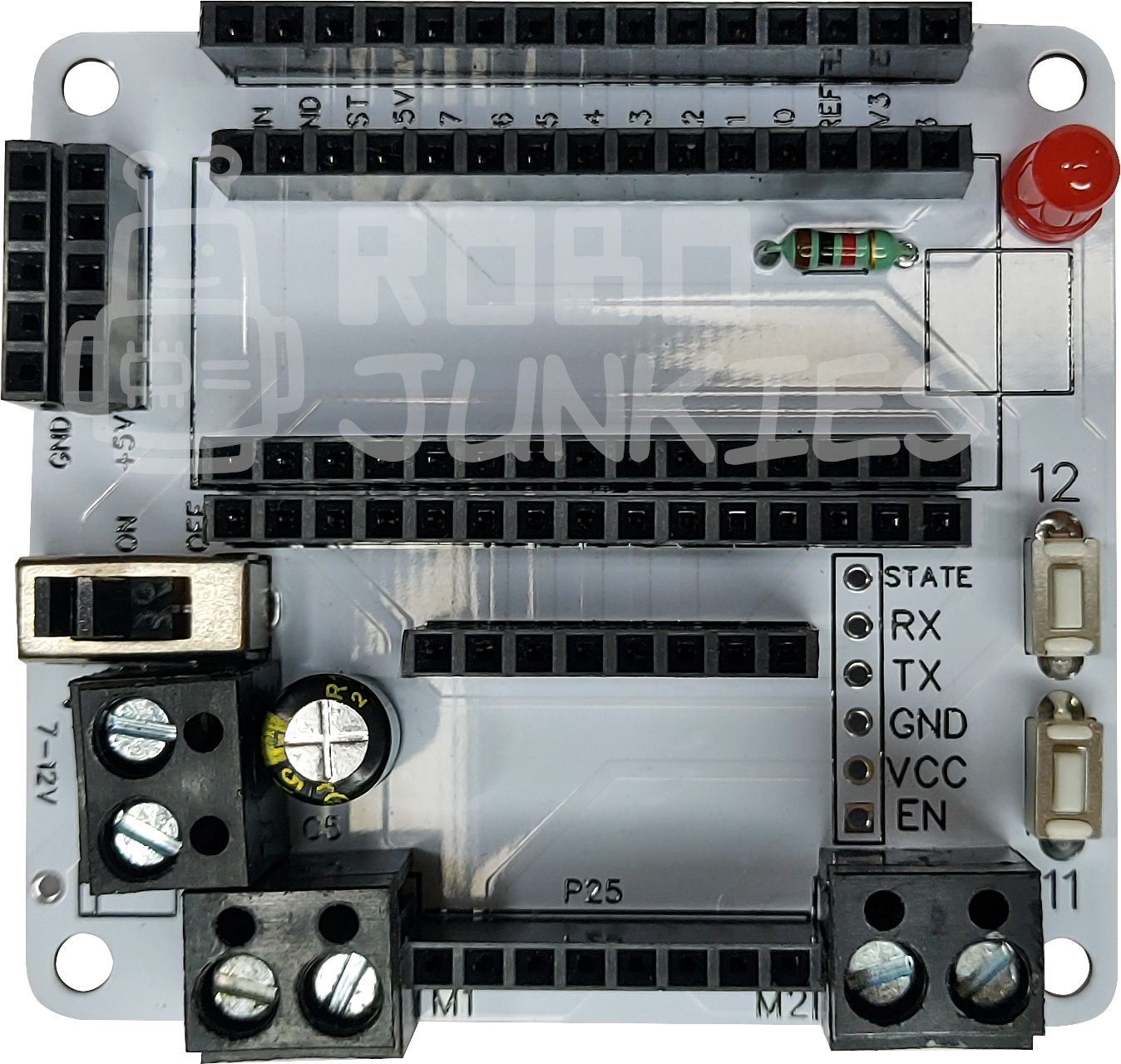

A sturdy slide switch allows you to quickly power off your battery supply to switch off your project. The carrier board also features an external LED preconnected to digital pin 13 as well as Screw Terminals which allow you to easily connect motors and power supply.

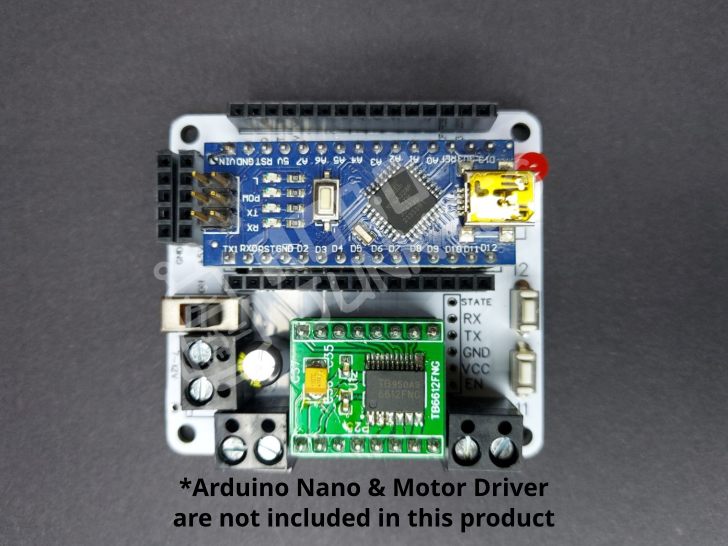

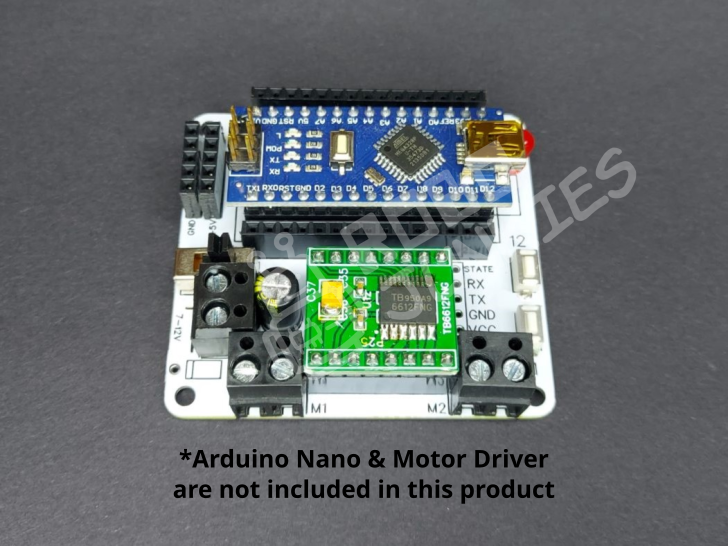

The connections between the Arduino Nano & TB6612FNG are premade on the carrier board as follows-
AIN1 – Digital Pin 4
BIN1 – Digital Pin 6
AIN2 – Digital Pin 3
BIN2 – Digital Pin 7
PWMA – Digital Pin 9
PWMB – Digital Pin 10
STBY – Digital Pin 5
